A Dubai district-cooling metering package should be procured as a complete measurement-to-billing system, not as a list of BTU meters. Buyers need to define the meter hierarchy, accuracy evidence, remote-reading path, required data fields, commissioning tests, billing controls, inspection records and long-term ownership before equipment is ordered.
That distinction matters because a meter can be technically suitable while the operating workflow around it is incomplete. A missing tenant mapping, an unrecorded multiplier or an unowned communications fault can undermine billing even when the display on the meter looks correct.
Source context: reviewed on 27 August 2026 using the Dubai Regulatory and Supervisory Bureau's RD06 Metering and Billing Requirements, version 1.1, its district-cooling regulation overview, and RD07 System Data requirements. This article is a procurement and operations guide, not legal, regulatory or design approval advice. Project teams should confirm the latest applicable requirements with the relevant authority and permit holder.
1. Establish the meter hierarchy before selecting hardware
Draw the measurement boundary from the district-cooling provider's master meter through the building network to every tenant or chargeable area. The schedule should identify which meter is used for provider settlement, building reconciliation, tenant allocation, plant performance or operational monitoring. Those purposes may require different locations, ranges and responsibilities.
- Assign one durable asset ID to every master meter and sub-meter.
- Record the served building, riser, floor, unit, tenant group and billing account.
- Identify supply and return pipe orientation, flow direction, access and isolation points.
- Name the owner of the meter, gateway, software account, SIM, data and maintenance record.
- Define how replacements preserve historical identity and billing continuity.
2. Ask for evidence, not a product-family statement
RD06 states accuracy and applicable EN 1434 expectations for relevant new metering installations and requires remote-reading capability for new meters. Procurement documents should therefore request the exact model, size, range, accuracy evidence, communication option and installation arrangement proposed for each duty. A brochure covering a wider product family is not the same as evidence for the ordered configuration.
Review permanent flow, minimum and maximum flow, temperature and temperature-difference ranges, pressure class, sensor arrangement, environmental protection and straight-pipe or installation constraints. Confirm whether the meter will be installed horizontally or vertically and whether the selected configuration remains valid in that position.
3. Design remote reading as an operating service
Remote readability is not satisfied by choosing an M-Bus, Modbus, pulse, LoRaWAN or IP option on a datasheet. The project still needs an end-to-end design covering addressing, gateway capacity, polling intervals, timestamps, buffering, retries, network ownership, credentials and recovery after an outage.
For mixed-brand portfolios, define the register map and units for every model. Preserve raw values as well as calculated or normalized values. If a gateway or platform converts units, the conversion rule and version should be documented so a billing operator can reproduce the result.
4. Specify the data contract
RD06 identifies data including supply temperature, return temperature, flow, cooling load and cooling consumption for relevant master-meter records, with hourly information in the stated context. Even where a particular field is not used directly on an invoice, it can be essential for validating a thermal-energy reading and diagnosing an abnormal result.
A project data contract should define:
- Meter and tenant identifiers, units, decimal precision and timestamp convention.
- Expected interval, billing cut-off and rules for late or recovered readings.
- Raw registers, calculated values and the source of each conversion factor.
- Missing-read, flatline, rollover, reverse-flow and out-of-range validation rules.
- Approved estimation and correction workflows with a visible audit history.
- Exports and interfaces required by AMR, MDMS, BMS, EMS and billing systems.
5. Commission the full chain
A local display test is only the beginning. Trace a sample reading from the meter through the gateway and validation layer into the billing or operations platform. Compare the raw register, normalized value and displayed result. Confirm the tenant and tariff mapping. Then test failure conditions.
- Interrupt communications and verify that the platform records a visible exception rather than silently repeating an old value.
- Simulate an invalid temperature sensor, implausible delta-T or out-of-range flow where the equipment permits safe testing.
- Confirm that recovered readings retain their original timestamps and do not create duplicates.
- Replace or readdress a test meter and prove that the asset and billing history remain traceable.
- Generate a sample invoice and trace the billed quantity back to the accepted field records.
6. Protect the billing audit trail
The billing team should be able to explain which reading was used, when it was received, whether it passed validation, which tariff version applied and who approved any correction. Keep the original value when a reading is edited or estimated. Record the reason, user, timestamp and superseding value.
Define ownership for tenant move-in and move-out dates, meter exchanges, common-area allocations, disputed periods and tariff changes. These controls often prevent more disputes than an additional dashboard.
7. Plan inspection and maintenance before handover
RD06 includes meter sealing, inspection, data-transfer and record responsibilities in its regulatory framework. The project should therefore hand over seal records, commissioning results, meter and gateway configurations, access credentials, backups, firmware information, warranties and a maintenance schedule. Isolation valves and physical access should allow inspection or replacement without creating an avoidable building-wide interruption.
A concise procurement gate
- Approved meter schedule tied to the mechanical and billing design.
- Exact model evidence for range, accuracy, applicable standards and communication.
- Remote-reading architecture with device counts and polling capacity.
- Meter, gateway, network, software, data and credential ownership matrix.
- Data dictionary and validation rules approved by operations and billing teams.
- End-to-end commissioning script including abnormal and recovery cases.
- Tenant mapping, tariff versioning, estimates, corrections and audit controls.
- Handover register, backups, training, support response and maintenance plan.
Relevant ConnectME delivery evidence

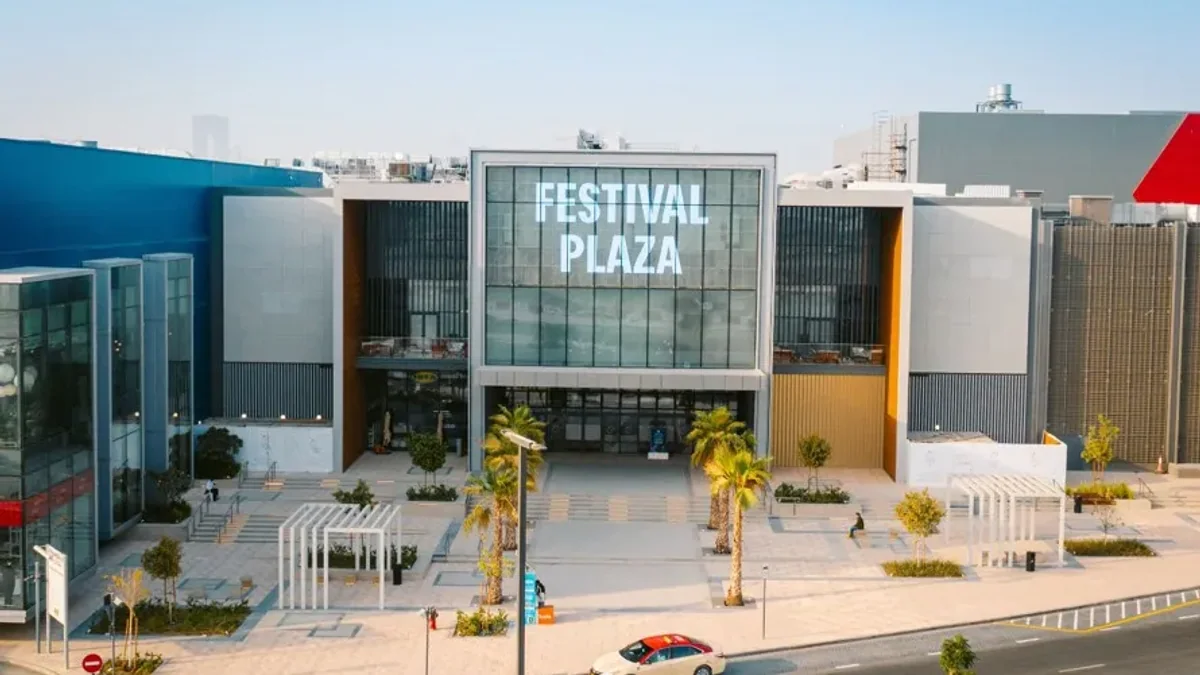

ConnectME's Festival Plaza Mall project used clamp-on BTU metering integrated with the building management system without a planned shutdown. The Palm Tower project brought five BTU meter brands into a central MDMS, while Five Luxe, JBR automated BTU and water-meter reading. These examples illustrate different integration patterns; they do not imply that one design is suitable for every project.
Where ConnectME fits
ConnectME can support BTU meter selection, clamp-on verification, gateways, AMR, MDMS, BMS integration, utility billing software, commissioning and meter maintenance. Final regulatory compliance depends on the approved project design, current rules, selected products, installation, commissioning and the responsibilities of the permit holder and other appointed parties.
Next step: bring the meter schedule, chilled-water schematic, tenant register and intended billing workflow into one design review. Contact ConnectME to turn those inputs into a traceable meter-to-billing scope before procurement.
A district-cooling meter becomes billing infrastructure only when its identity, data path, validation rules and operational owner are all defined.
